Bus Hound version 7.05




Experience the power of a software bus analyzer capturing I/O, low level protocol and send commands to devices.


download
download Download the free version

The free version limits the amount of data that can be captured, but is otherwise identical to the full version. There is no registration, no adware, and no expiration.

cart Buy the full version or upgrade


Bus Support
USB 1.0 - 4.0
NVMe
SATA & IDE
SCSI & ATAPI
FireWire, 1394A/B
Bluetooth
Fibre Channel
iSCSI, SAS
PC Card, PCMCIA
serial port
parallel port
ps/2 ports
...and more
OS Support
Windows 11
Windows 10
Server 2022
Server 2019

+ Windows versions back to Win95 and NT4 available to full version customers
Device Support
Blu-ray, DVD, CD
Hard drives, tape drives
Memory cards
Web Cams, Cameras
Mice, Keyboards, HID
Printers, Scanners
Speakers, Modems
...and everything else!


  Power User Features
Capture megabytes of I/O at a time
View I/O on screen in real time
Trigger on conditions
Build and submit custom commands
Issue bus and device resets
Capture the system startup process
View low level protocol including SCSI sense data and SMART commands
View microsecond resolution timing
Drag and drop captured data to other applications or save it to a zip file
Capture isochronous and control transfers
View IRPs and other device driver packets
  Ideal Uses
Inspect low level I/O
Debug device drivers or firmware
Reverse engineer protocol
Acquire performance measurements
Research the principles of device operation
Uncover hard to find device properties



Data captured from an NVMe M.2 disk

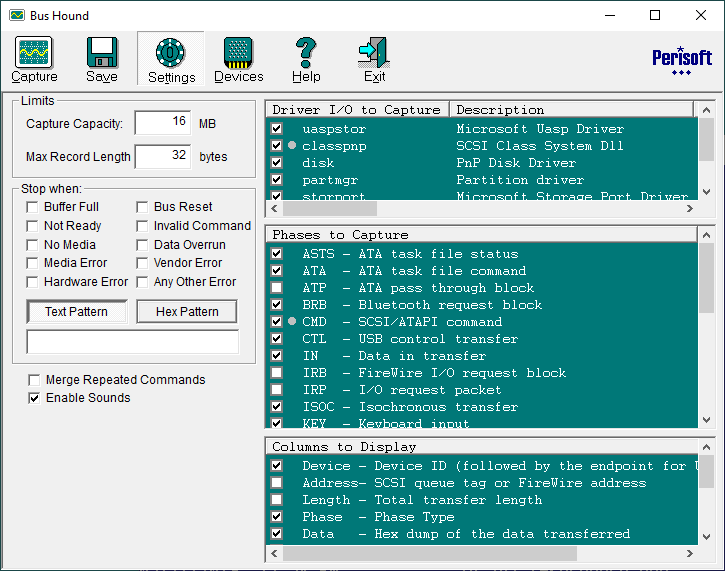

Settings and triggers

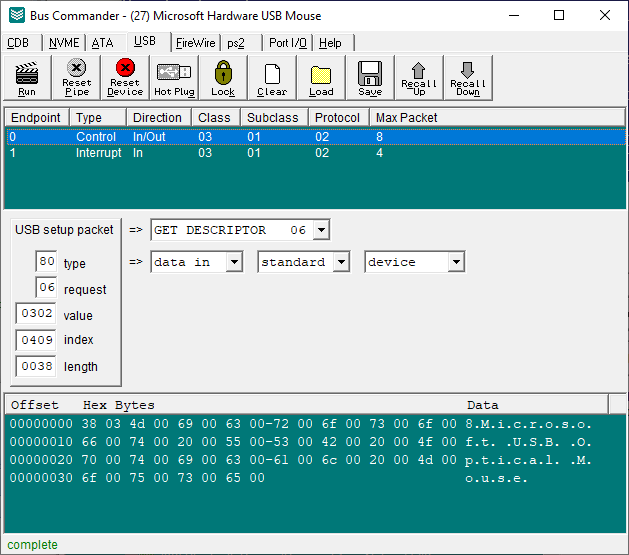

Sending a string descriptor request to a USB mouse


Everyone is now using Bus Hound in our lab and I think that it has now become a "must have" tool. I am always hearing people ask the critical question "Did you get a Bus Hound trace of that event?"


"Thank you for the great software. It provided just the proof I needed to get my hardware subcontractor to fix their product's firmware. It worked as advertised and at a price MUCH lower than a full-blown SCSI-bus hardware analyzer. Thanks again and keep up the good work!"
Trusted for over 20 years
